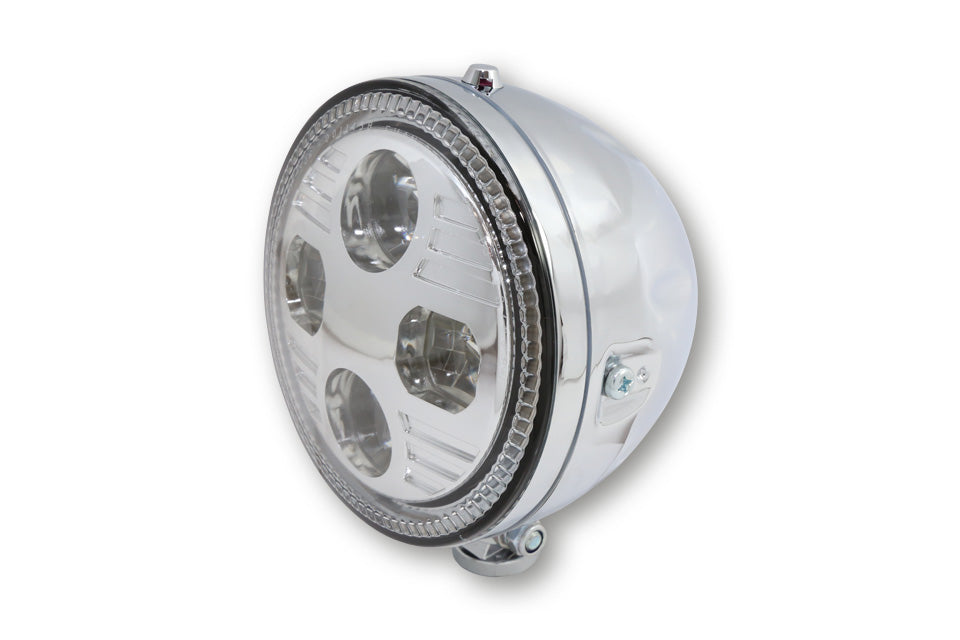

Highsider LED Headlight 5-3/4 inch "ATLANTA" Bottom Mount -Chrome

HIGHSIDER 5 3/4 inch LED headlight ATLANTA with parking light for lower mounting

The innovation for your safety - the model ATLANTA is a headlight equipped with 4 power LEDs, packed in a high quality black metal housing. The LED technology for low beam and high beam produces a symmetrical, daylight-like light for optimum visibility, E-approved.

The bright joy: Give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlamp series will definitely make you a sensational highlight.

Headlight dimensions:
Diameter: 145 mm
Depth: 65 mm (from fixing screw to rear housing)
Depth: 135 mm

Control box dimensions:
Height: 74 mm
Width: 42mm
Depth: 21 mm
Fixing: bottom with threaded bolt M10, length:25 mm

Weight:
Headlight: approx. 1200 g
Control unit approx. 210 g

Technical data:
Current consumption dipped beam at 12.5 Volt: 1.1 Ampere (13.75 Watt)
Current consumption high beam at 12.5 Volt: 2.3 Ampere (28.75 Watt)
Light current at 12 Volt: high and low beam each 1200 Lumen

Connections:
9 -16 Volt DC
Green = Ground
White cable = Low beam
Blue cable = High beam
Brown cable = Parking light

Scope of supply: 1 piece

Note: The control box must be connected!
