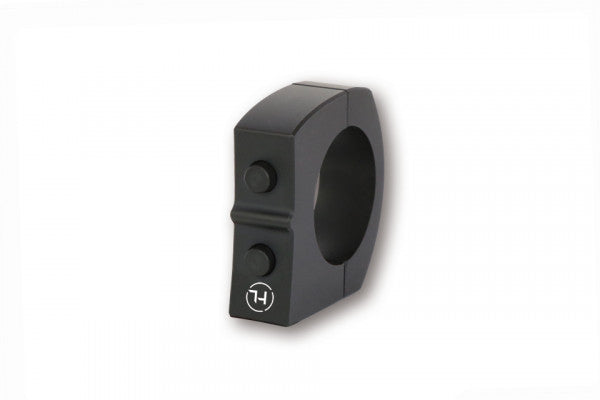

HIGHSIDER 240-070 CNC Button Switch Black for 7/8 inch and 1 inch Handlebars

HIGHSIDER complete CNC milled switch with two buttons.

Suitable for 7/8 inch and 1 inch handlebars. Universally applicable for controlling load relays, switching various modes on speedometers, etc.

Precisely tuned the extensive accessories from HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality and functionality you can easily design your bike according to your wishes.

Dimensions
Width: 12 mm
Depth: 40 mm
Pushbutton Ø: 4.5 mm
Rubber: 75 mm x 0.3 mm
HEX screws: M3 x 12 mm
Cable length: 570 mm
br/>Application:
Knob A : green + red
(from bottom)
knob B : green + brown
green = input signal

scope of supply:
1 piece push-button
1 x rubber
2 x screw

notes: NOT for currents above 0.05 amperes. At 12 Volt max. 0.6 Watt!
