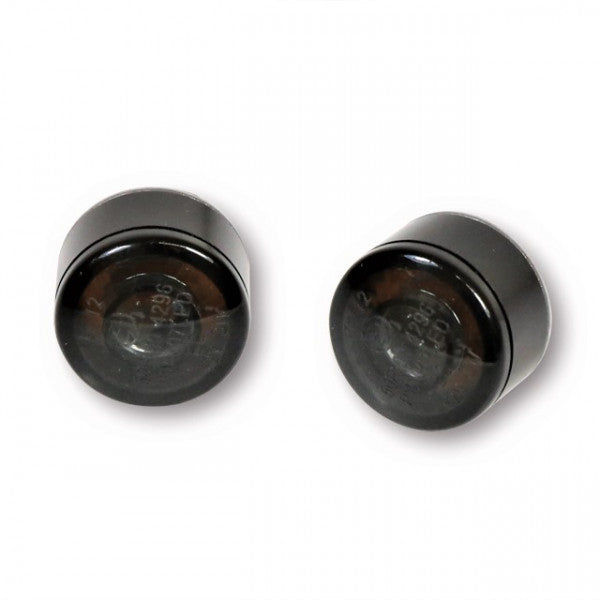

HIGHSIDER 204-170 LED Indicator/ Position Light "APOLLO" Black (Pair)

HIGHSIDER APOLLO LED turn signal module

LED turn signal module suitable for installation or surface mounting, black aluminium ring with tinted glass, E-approved.

With this innovative lighting technology, 2very bright SMD LEDs are used, which allow an extremely small design. The outer ring on the other hand consists of the new COB technology (Chip On Board). The new LED chip embedding forHigh-power LEDs achieve a very high luminance with the best possible efficiency and service life. This also allows higher light values to be achieved than with conventional LEDs. ThisModule is supplied with a black anodized aluminum ring that fits over the base body.

In the right direction - with the innovative turn signal series from HIGHSIDER Do not only show where youbut who you are.
This is trend-setting design at its best.

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm

Threaded bolt: M8, length: 12mm

Connections:
Black cable = ground (-)
Yellow cable = indicator (+)

Supplied with: 1 pair

Note:
The unit can be installed flat without an aluminium ring, so that only the lensis visible. For this purpose a 20 mm hole must be drilled.
alternatively the unit can be mounted with the aluminium ring on e.g. a mounting plate on the vehicle, see instructions art.no. 204-170A.

optionalcan be ordered:
Fitting rear light/indicator unit, article no. 254-170
Fitting indicator/position light unit, article no. 204-172
