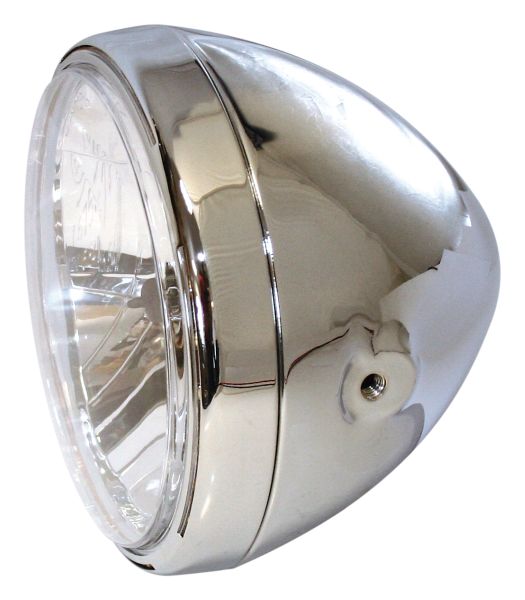

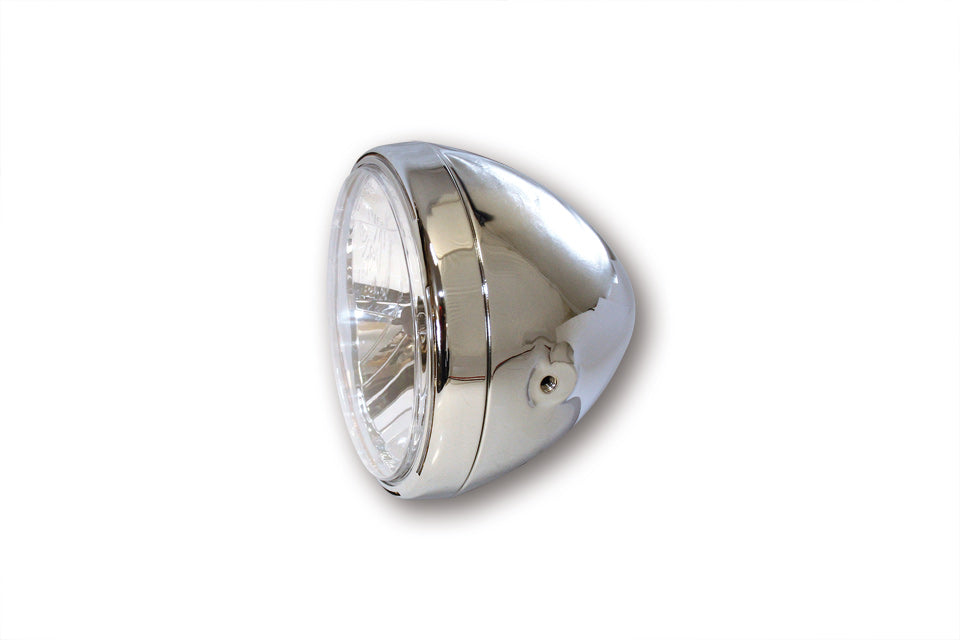

LED Headlight "RENO 2" 7 inch - Chrome - SHIN YO 223-145

"Headlight with LED ""SHIN YO 7 inch Reno 2"" Headlight with LED position light in the lamp ring in a chrome metal housing.With E-mark
Bulb: H4 prism reflector

Mounting: on the side with M8 threaded bolts

Dimensions:
Diameter: 200 mm
Depth: 160 mm
Distance between the mounting holes (center - center): 170 mm
Distance mounting hole (center) to the end of the housing: Approx. 90 mm Technical specifications:
3-way connector For the H4 insert
green = ground (-)
white = low beam (+)
blue = high beam (+)

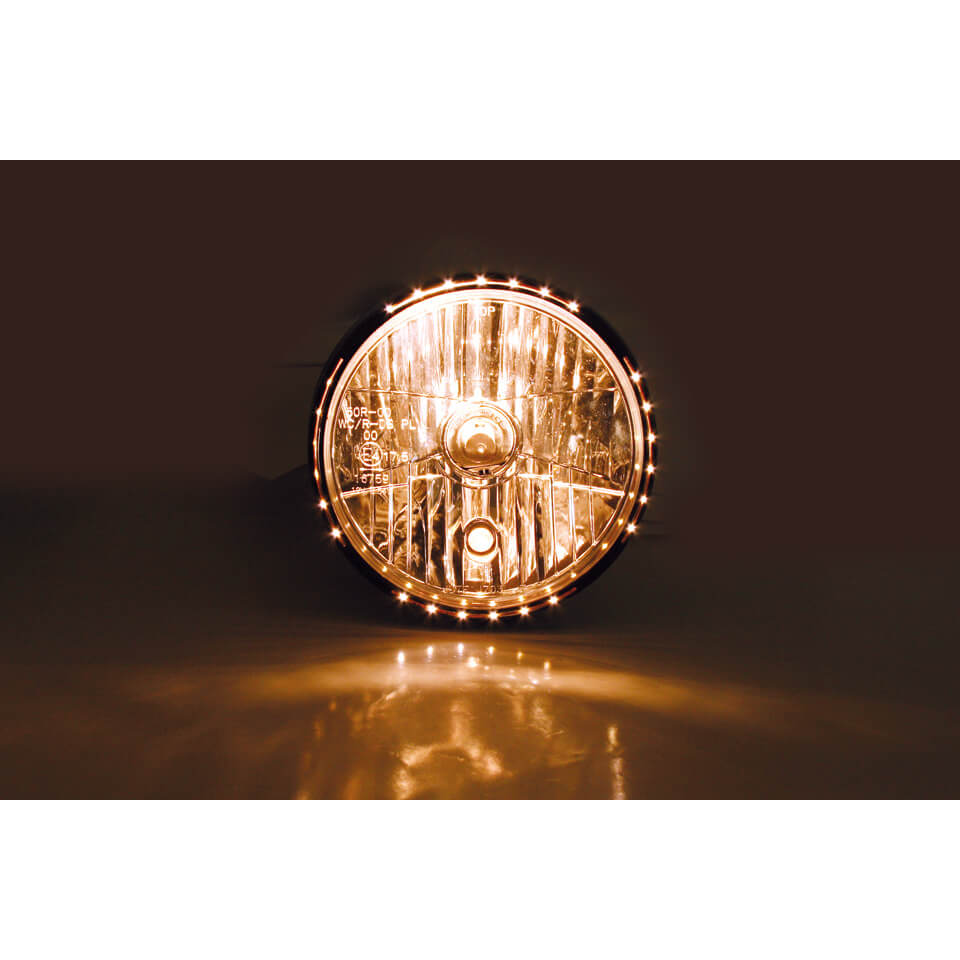

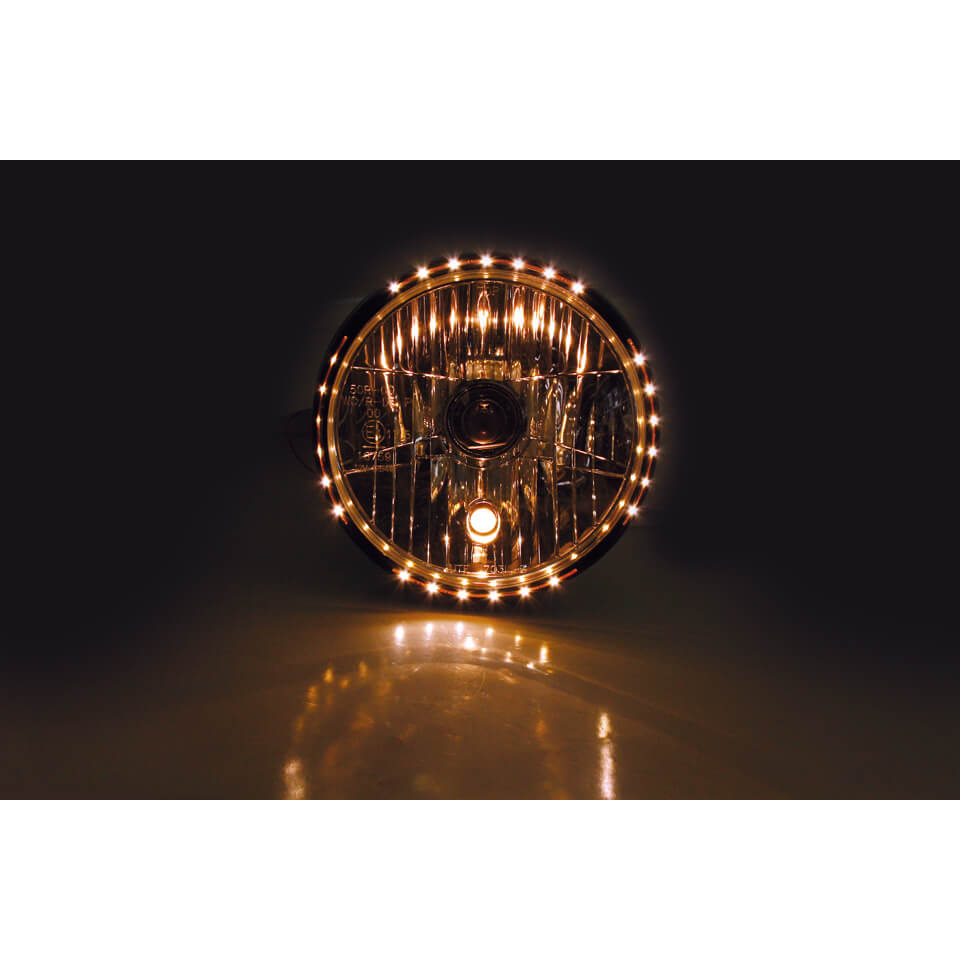

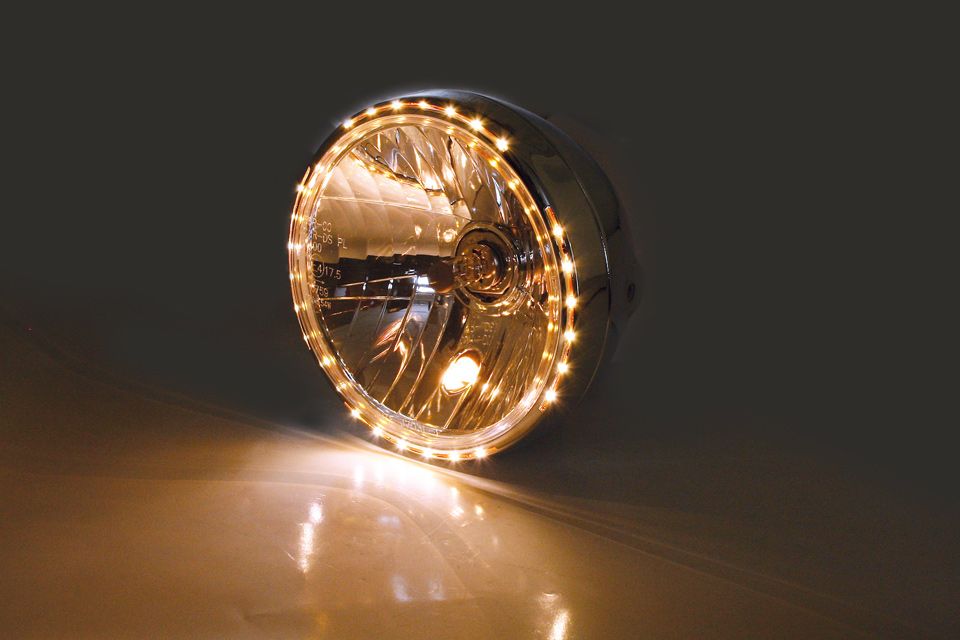

LED ring For front position light
brown = plus (+)
black = ground (-)"
