HIGHSIDER 223-223 LED Headlight 5-3/4 inch "PECOS TYPE 7 inch Side Mount - Black

HIGHSIDER 5 3/4 inch LED headlamp PECOS TYPE 7 with parking light ring, black, E-approved

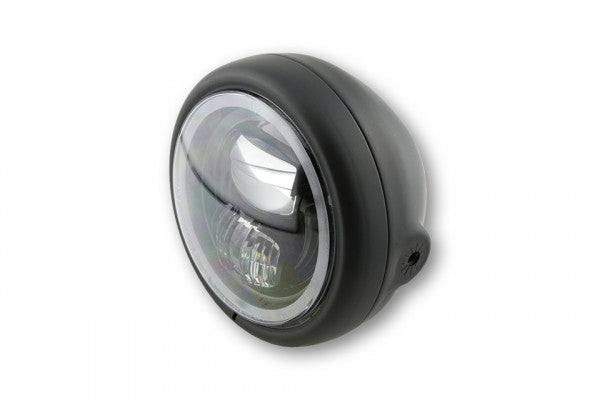

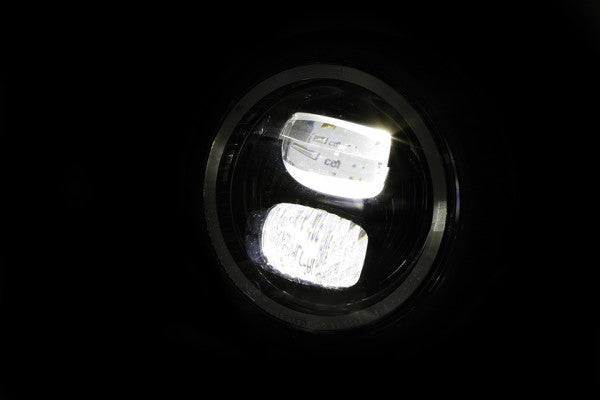

Puristically shaped main headlamp with matt black metal housing and lateral fixing points.The PECOS TYPE 7 is characterised by the latest lighting technology and the extraordinary lighting design. The special feature of this LED headlight with parking light ring is the dark appearance thanks to matt blackhousing and the unobtrusive reflector in black. In the upper part of the headlamp the low beam lights up and when the high beam is switched on both areas light up.

Our Highlights -give your bike a distinctive style!
The unusual design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Properties:
-Light source: LED
- Glass: clear

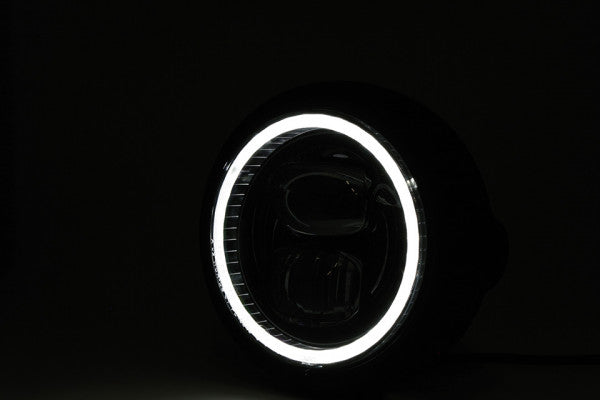

- Black reflector with stand light ring
- Fixing point: on the side with M6 thread

Dimensions:
Housing diameter: 165 mm
Depth: 135 mm
DistanceAttachment points: Approx. 160 mm

Connections:
Power consumption: 3 Pin Connectors
White = Low beam (+)
Red = High beam (+)
Black = Ground (-)
Green = Position light (+)

Blue = Position light (+)

Supplied: 1piece
