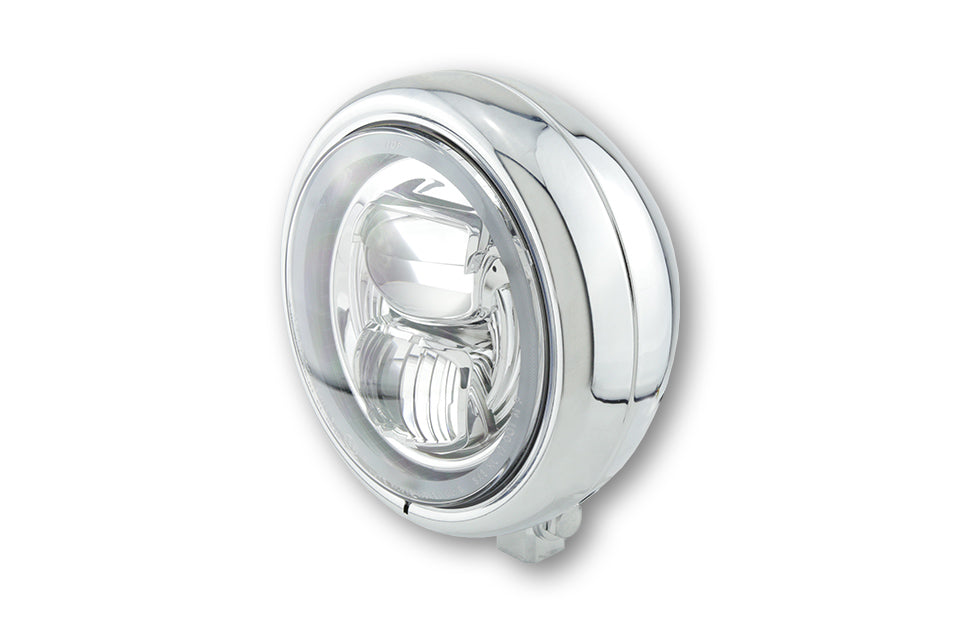

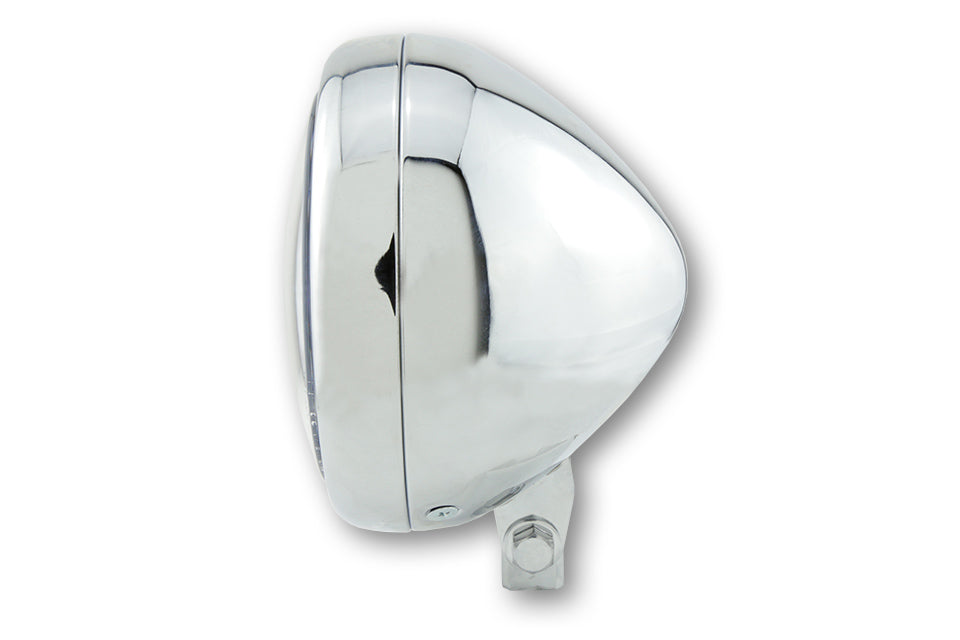

HIGHSIDER 223-226 LED Headlight 5-3/4 inch "PECOS TYPE 7 inch Bottom Mount - Chrome

HIGHSIDER 5 3/4 inch LED headlamp PECOS TYPE 7 with parking light ring, black matt or chrome-plated, E-approved

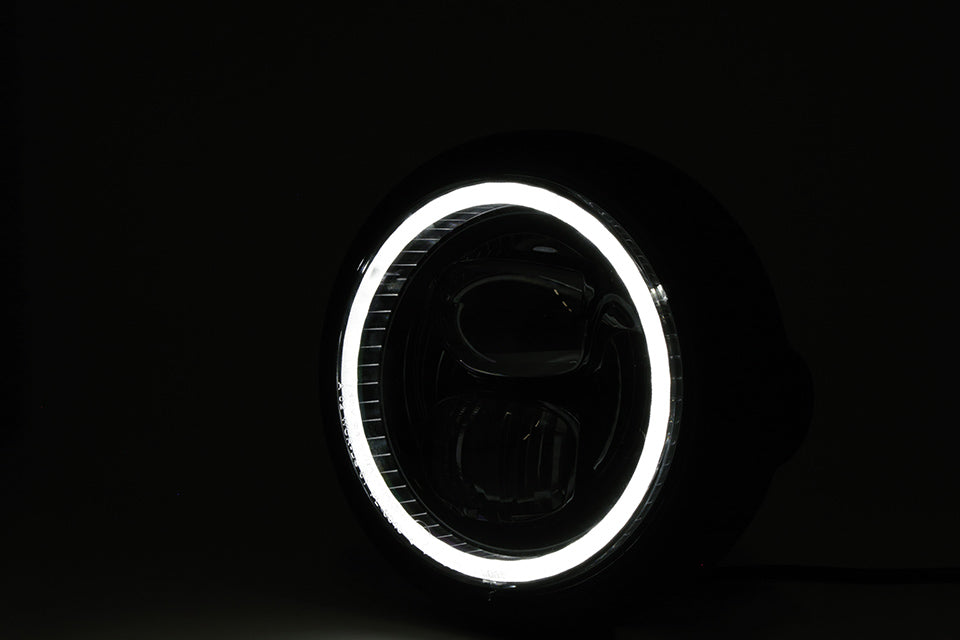

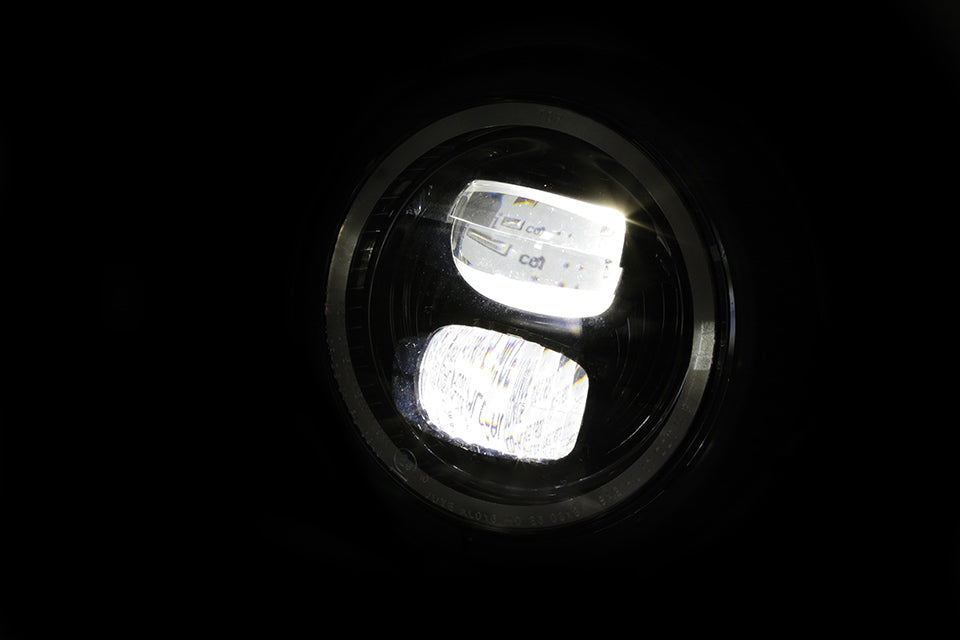

Puristically shaped main headlamp with matt black metal housing for lowerAttachment. The PECOS TYPE 7 is characterised by the latest lighting technology and the extraordinary lighting design. The special feature of this LED headlight with parking light ring is the dark appearance thanks to mattblack housing and the unobtrusive reflector in black. In the upper part of the headlamp the low beam lights up and when the high beam is switched on both areas light up.

OurHighlights - give your bike a distinctive style!
The unusual design and perfect technology of the HIGHSIDER headlight series make it aHighlight!

Properties:
- Light source: LED
- Glass: clear
- Black reflector with stand light ring
- Fixing point: bottom

Dimensions:
Housing diameter: 165 mm
Depth: 135mm

Connections:
Power consumption: 3 Pin Connector
White = Low beam (+)
Red = High beam (+)
Black = Ground (-)
Green = Position light (+)

Supplied: 1 piece
