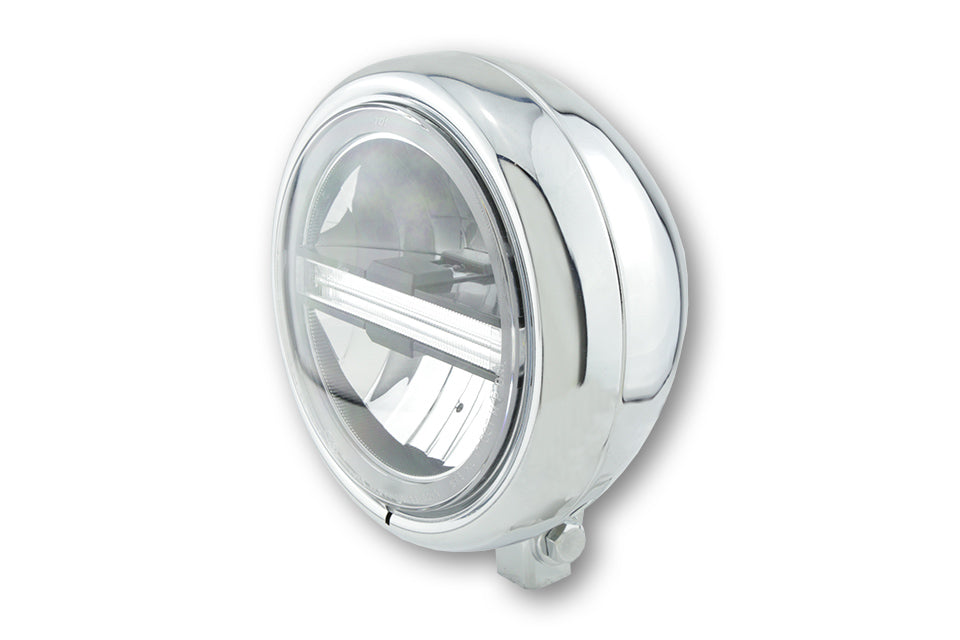

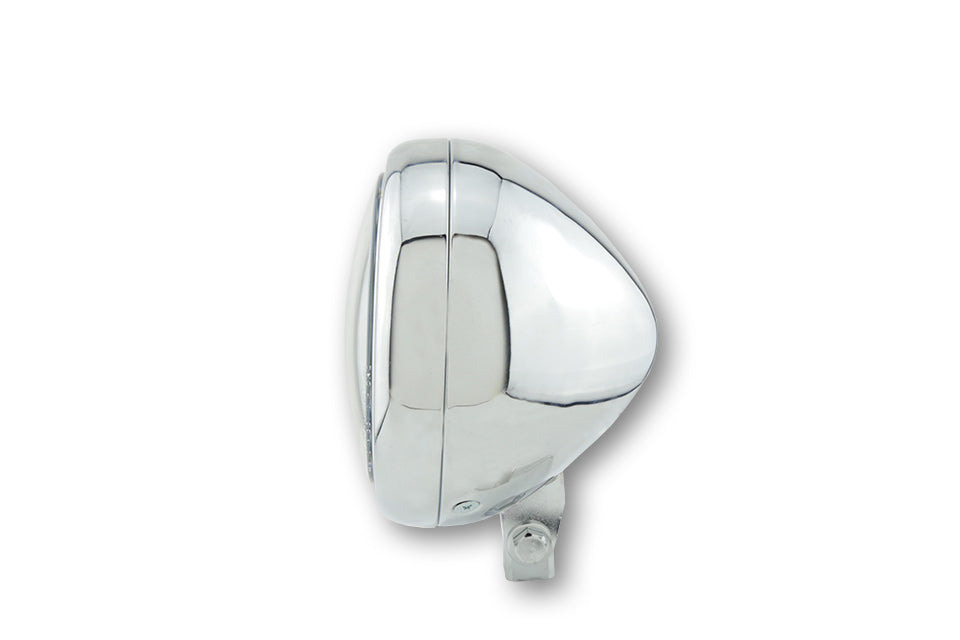

HIGHSIDER 223-222 LED Headlight 5-3/4 inch "PECOS TYPE 6" with TFL, Bottom Mount - Chrome

HIGHSIDER 5 3/4 inch LED headlamp PECOS TYPE 6 with TFL, black matt or chrome-plated, E-approved

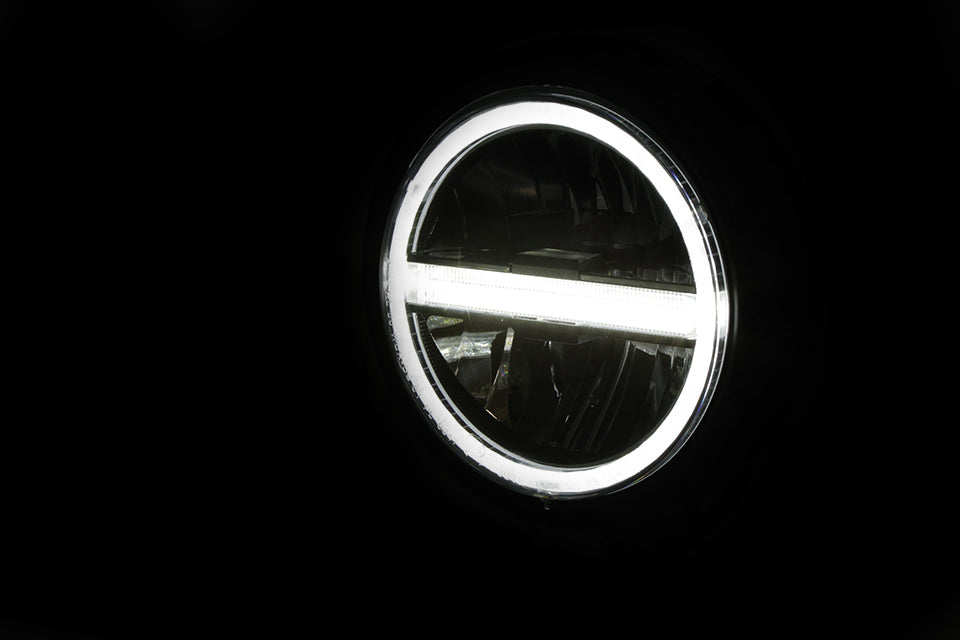

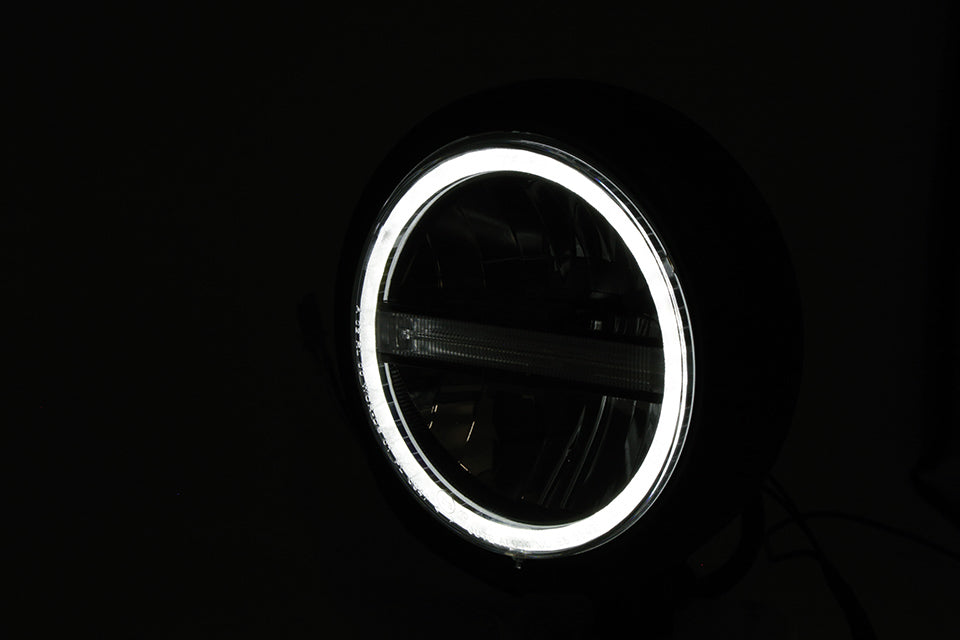

Puristically shaped main headlamp with metal housing for bottom mounting. The latestThe PECOS TYPE 6 is characterised by lighting technology and an extraordinary lighting design. The special feature of this LED headlamp is the additional equipment with daytime running light and parking light ring. TheDaytime running light for even greater visibility in road traffic is located in the centrally positioned strip. In the upper half of the headlamp the dipped beam lights up and when switched onHigh beam lights illuminate both halves.

Sightening - give your bike a distinctive style! The unusual design and perfect technology of the HIGHSIDER headlight seriesmake it a highlight in any case!

- Light source: LED
- Glass: clear
- Chromed reflector with TFL/DRL and parking light ring
- Fixing point:bottom

Dimensions:
Housing diameter: 165 mm
Depth: 135 mm

Connectors:
Power consumption: 3-pin connector
White = low beam (+)
Blue = high beam (+)
Green = ground (-)
Red = TFL/DRL (+) onIgnition plus
brown = position light (+)

delivery scope: 1 piece

Optional order:
- Best. No.: 208-108 HIGHSIDER DRL CONTROL- BOX CB1 , Daytime running light control box for vehicles withoutLight switch, 12V
- Best. No.: 240-044 Light switch on/off with clamp for handlebar mounting
