HIGHSIDER 223-219 LED Headlight 5-3/4 inch "PECOS TYPE 6" with DRL, Side Mount - Black

HIGHSIDER 5 3/4 inch LED spotlight PECOS TYPE 6 with TFL, black, E-tested

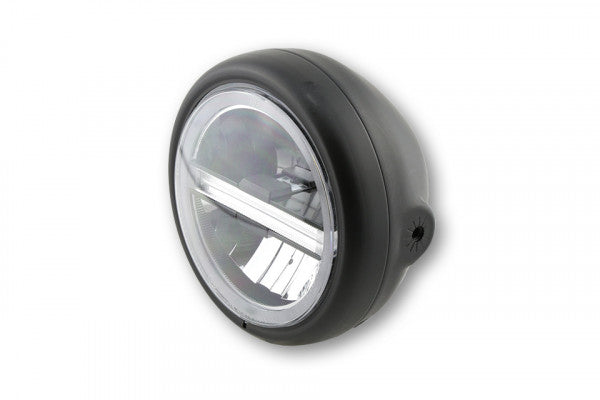

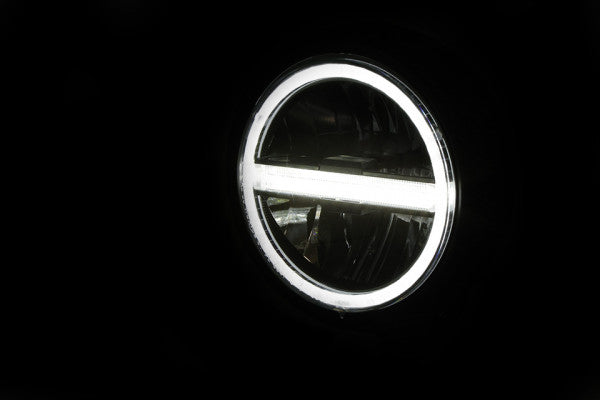

Puristically shaped headlight with matt black metal housing and side mounting points. The PECOS TYPE 6 is characterised by the latest lighting technology and the great lighting design. The special feature of this LED headlight is the additional equipment with daytime running light and parking light ring. The daytime running light for even more visibility in road traffic is located in the middle of the strip. In the upper half of the headlight the low beam lights up and when the high beam is switched on both halves light up.

Astonishing give your bike an unmistakable style!
The unusual design and perfect technology of the HIGHSIDER headlamp series make it a highlight in any case!

Features:
Illuminant: LED
Glass: clear

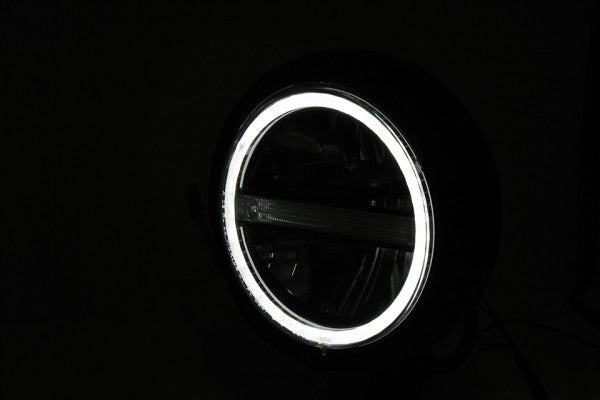

Chrome-plated reflector with TFL/DRL and parking light ring
Mounting point: lateral with M6 thread

Dimensions:
Casing diameter: 165 mm
Depth: 135 mm
Distance between mounting points: approx. 160 mm

Connections:
Power consumption: 3-pin plug
White = dipped beam (+)
Blue = high beam (+)
Green = ground (-)
Red = TFL/DRL (+) on ignition plus
Brown = position light (+)

Scope of supply: 1 piece

Optionally orderable:
HIGHSIDER DRL CONTROL- BOX CB1 , Daytime running light control box for vehicles without light switch, 12V Art. no.-No.: 208-108
Light switch on/off with clamp for handlebar mounting e.g. Art.-Nr.: 240-044
