HIGHSIDER 223-218 LED Headlight 5-3/4 inch "PECOS TYPE 5" Bottom Mount - Chrome

HIGHSIDER 5 3/4 inch LED headlamp PECOS TYPE 5, E-approved

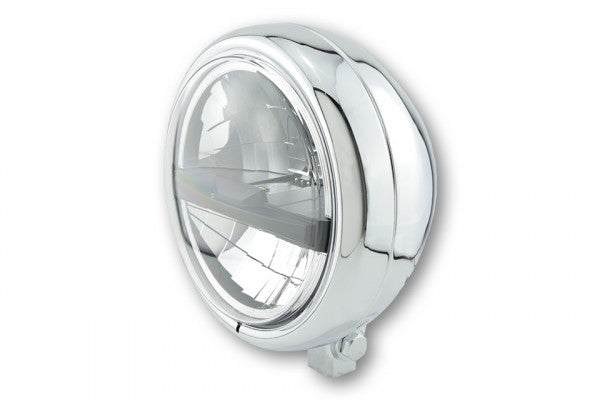

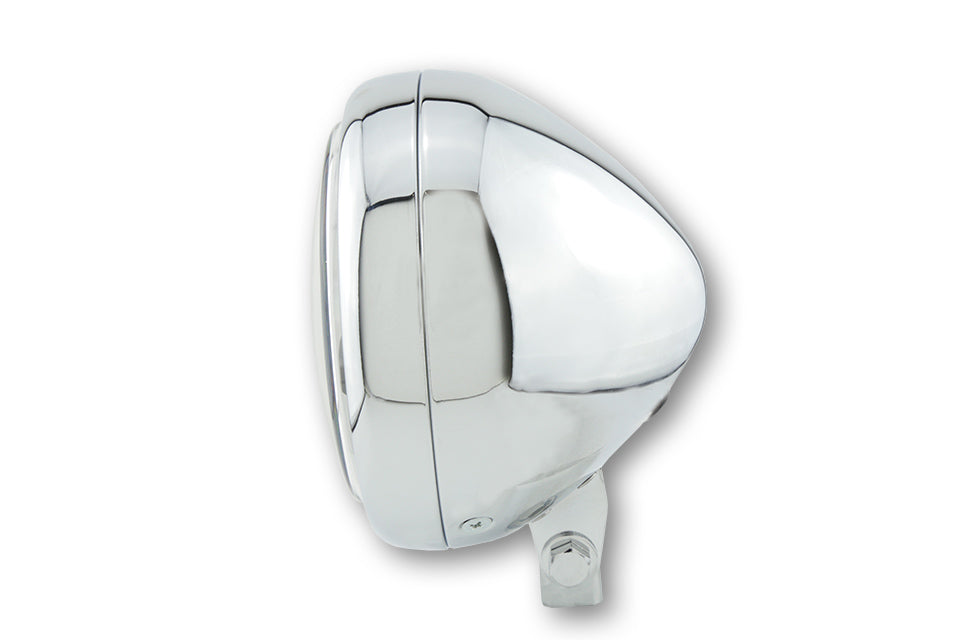

Puristically shaped main headlamp with matt black or chrome-plated metal housing features high beam, low beam andParking light function. In the upper half the dipped beam lights up and when the main beam is switched on both halves of the headlamp light up. A black bar is integrated in the centre of the reflector.The simple design is ideal for classics, roadsters and customized bikes.

Our highlights - give your bike a distinctive style! The fancy design and the perfectTechnology of the HIGHSIDER headlight series make it a highlight in any case!

- Light source: LED
- Glass: clear
- Chrome-plated reflector with black trim
-Mounting point: bottom

Dimensions:
Housing diameter: 165 mm
Depth: 135 mm

Connections:
Power consumption: 3-pin connector
Red = low beam (+)
White = high beam (+)
Brown =position light (+)
black = mass (-)

delivery scope: 1 piece
