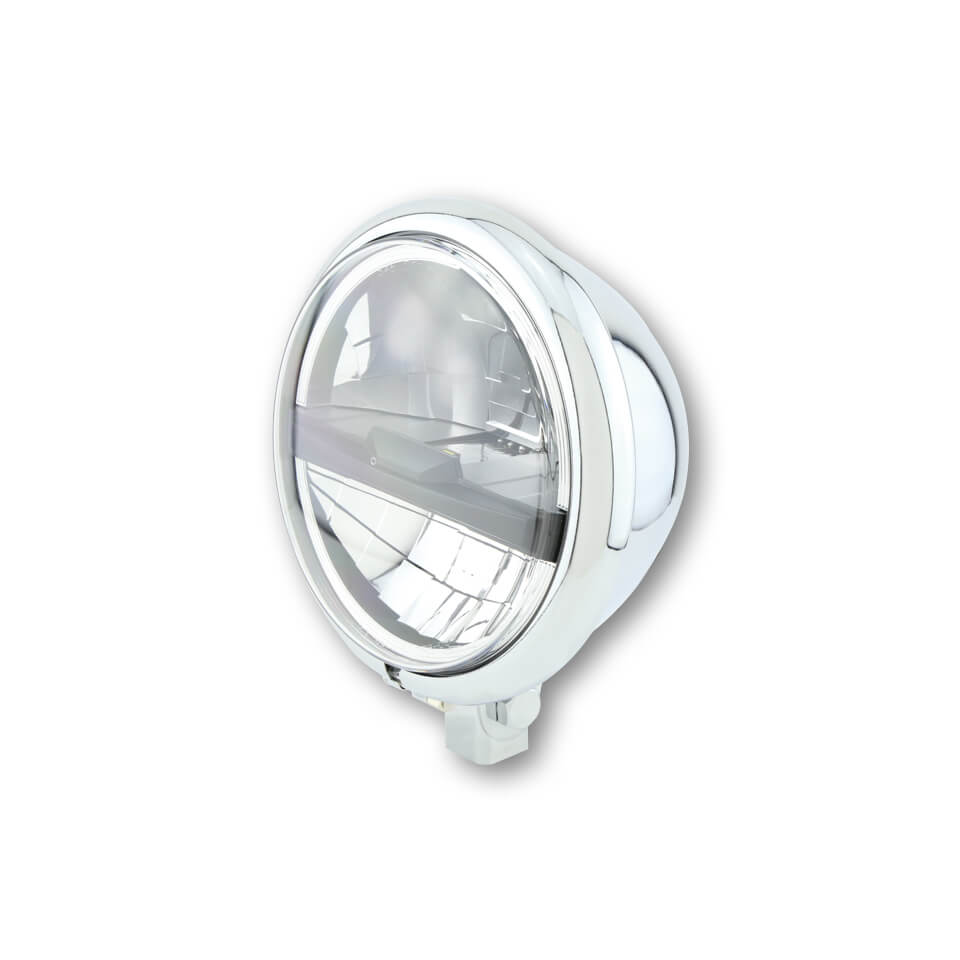

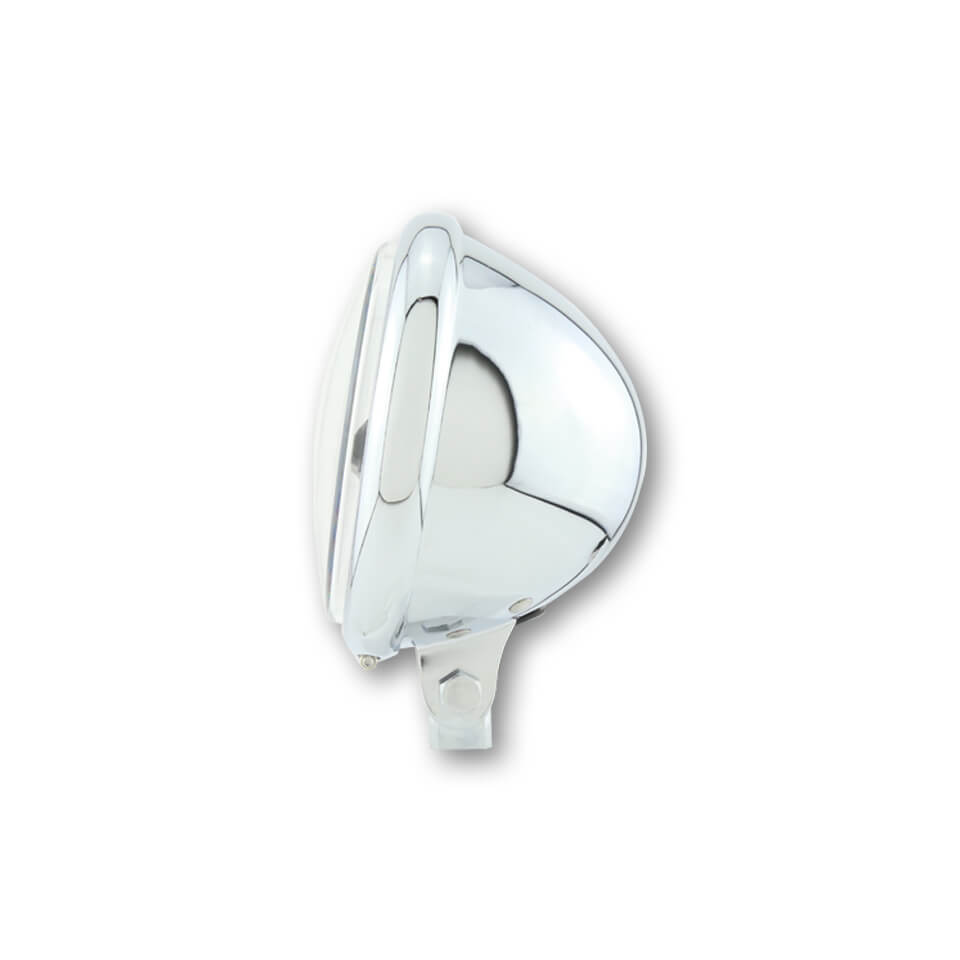

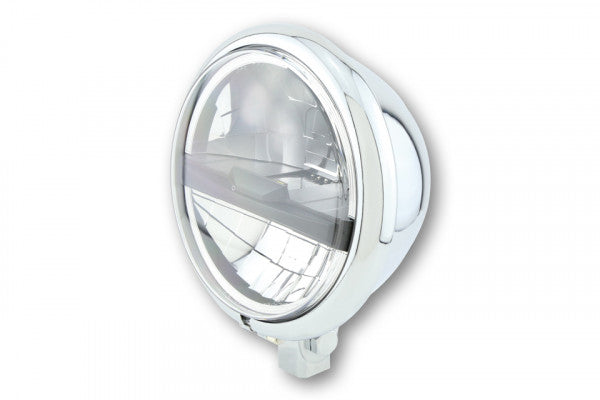

HIGHSIDER 223-214 LED Headlight 5-3/4 inch "BATES STYLE TYPE 5" Bottom Mount - Chrome

HIGHSIDER 5 3/4 inch LED headlight BATES STYLE TYPE 5, E-approved

Stylish LED headlight with black or chrome metal housing in BATES STYLE design. The round, chrome-plated reflector with black diaphragm and clear glass has a high beam, low beam and parking light function.
In the upper half, the low beam illuminates and when the high beam is switched on, both halves of the headlight illuminate.
The tested headlight is also robust and easy to install.

Our highlights give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlamp series make it a highlight in any case!

Dimensions:
- Diameter of housing: 155 mm
- Diameter of headlight insert: 145 mm
- Depth without glass: 110 mm
Attachment: bottom

connections:
(3 pin plug)
red = low beam (+)white = high beam (+)black = ground (-)
brown = position light (+)black = ground (-)

Scope of supply: 1 piece

Spare part:
Best. No.: 226-017 HIGHSIDER LED main headlight insert TYPE 5
